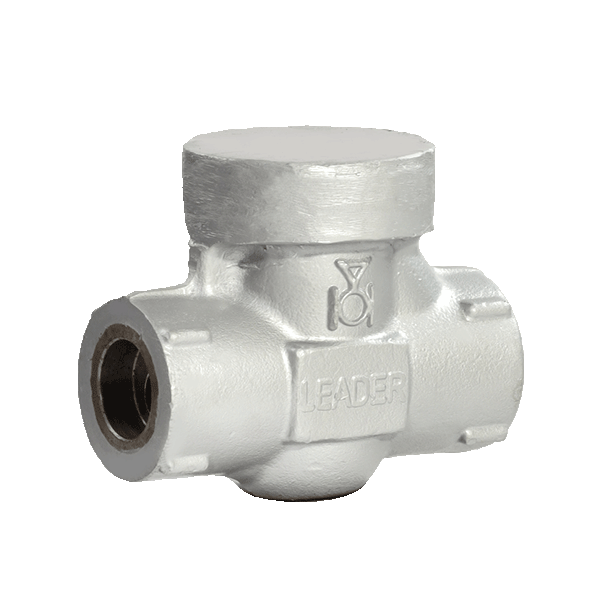

FCS015 Forged Steel Horizontal Lift Check Valve Welded Cover Class-1500 (Socket Weld / Screwed)

FCS015
  • Item Code: FCS015
  • Pressure Rating: CL-1500
  • Testing Standard: API-598, BSEN 12266 Part-1
  • Size Range: 15mm to 40mm
  • Product Standard: BSEN ISO 15761, ASME B16.34

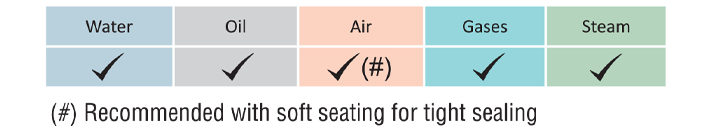

Suitable For

FCS015

Material Specification

P. No. NAME OF PART CARBON STEEL ALLOY STEEL STAINLESS STEEL
1 BODY A105 A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182 F304L A182 F316L
2 SEAT RING ASTM A276 TYPE 410 SS 304 SS 410 SS 410 SS 410 SS 410 SS 304 SS 316 SS 304L SS 316L
3 DISC ASTM A217 Gr. CA15 / ASTM 276 TYPE 410 SS 304 CA15 / SS 410 CA15 / SS 410 CA15 / SS 410 CA15 / SS 410 SS 304 SS 316 SS 304L SS 316L
4 COVER A105 A350 LF2 A182 F5 A182 F11 A182 F22 A182 F9 A182 F304 A182 F316 A182 F304L A182 F316L

Dimensional Data

FCS015

SIZE (mm) 15 20 25 32 40
L 100 124 145 170 170
~H 75 88 92 120 120
∅b 12 16 19 31 31
Rc 1/2" 3/4" 1" 1-1/4" 1-1/2"
C 18 18 23 24 24
∅SW AS PER ASME B16.11 22.2 27.6 34.3 43.1 49.2
21.8 27.2 33.9 42.7 48.8
D 11 14 14 14 14

Principle Features

INTRODUCTION

Leader forged steel check valve is to provide with single disc. With the force of medium, the disc will automatically open or close, When the media stops the flow, the disc will be closed under its own force. No manual intervention is involved in the whole process Check valve is mainly to prevent the media reverse flow and ensure one-way flow of media channels only. It prevents accidents while a sudden loss of power in the pipeline medium such as the power equipment like pump damages, and the medium reserve flow against power source.

  • Design Std.: BSEN ISO 15761, ASME B16.34.
  • Pressure Temperature Rating as per ASME B16.34, BSEN ISO 15761.
  • Sturdy design for high-pressure & temperature service.
  • Welded body-cover joints offer an additional level of safety against fugitive emissions.
  • Piston / Disc is guided in the Cover assuring accurate return to seating to achieve leak tightness.
  • Spring-loaded disc on check valves suitable for non-horizontal applications too available on request.
  • Socket welded ends as per ASME B16.11.
  • Butt weld ends as per ASME B16.25 available on request.
  • Low-Temperature Carbon Steel & Austenitic SS forging for body and cover design qualified as per BS 6364 for Cryogenic service available on request.
  • Valves can be offered to NACE MR-0175 and other special NACE requirements.
  • Valves are available with IBR certification.

TEST PRESSURE(Hydrostatic)

Rating CL-1500
Body (Hyd.) 384 Bar
Seat (Hyd.) 281 Bar

END CONNECTION

  • Socket Weld/Screwed ends/Butt Welded ends.

WORKING PRESSURE

  • Maximum working pressure 255 Bar (CL-1500).

TEMPERATURE LIMITS

  • Maximum working temperature 425°C.

TRIM MATERIAL COMBINATION (ON REQUEST)

Trim No. Seat Ring Face Wedge Seat Face Stem Backseat Bush Lantern Ring
2 F304 F304 F304/AISI304 F304/AISI304 F304/AISI304
5 STELLITE(#6) STELLITE(#6) F6a/AISI410 F6a/AISI410 F6a/AISI410
8 STELLITE(#6) F6a/13%Cr. F6a/AISI410 F6a/AISI410 F6a/AISI410
9 MONEL MONEL MONEL MONEL MONEL
10 F316 F316 F316/AISI316 F316/AISI316 F316/AISI316
12 316+Stellite(#6) 316 F316/AISI316 F316/AISI316 F316/AISI316
13 ALLOY 20 ALLOY 20 ALLOY 20 ALLOY 20 ALLOY 20
