Material Specification
| Product | Elbow 90 Deg. | Elbow 45 Deg. | Tee | Full Coupling | Half Coupling | Round Cap |
|---|---|---|---|---|---|---|
| Product Standard | ASME B16.11 | ASME B16.11 | ASME B16.11 | ASME B16.11 | ASME B16.11 | ASME B16.11 |
| Material | A105, LF2, F5, F9, F11, F22, F304, F304L, F316, F316L, F321 | A105, LF2, F5, F9, F11, F22, F304, F304L, F316, F316L, F321 | A105, LF2, F5, F9, F11, F22, F304, F304L, F316, F316L, F321 | A105, LF2, F5, F9, F11, F22, F304, F304L, F316, F316L, F321 | A105, LF2, F5, F9, F11, F22, F304, F304L, F316, F316L, F321 | A105, LF2, F5, F9, F11, F22, F304, F304L, F316, F316L, F321 |
| End Detail | Screwed Female NPT Threads to ANSI/ASME B1.20.1 | Screwed Female NPT Threads to ANSI/ASME B1.20.1 | Screwed Female NPT Threads to ANSI/ASME B1.20.1 | Screwed Female NPT Threads to ANSI/ASME B1.20.1 | Screwed Female NPT Threads to ANSI/ASME B1.20.1 | Screwed Female NPT Threads to ANSI/ASME B1.20.1 |

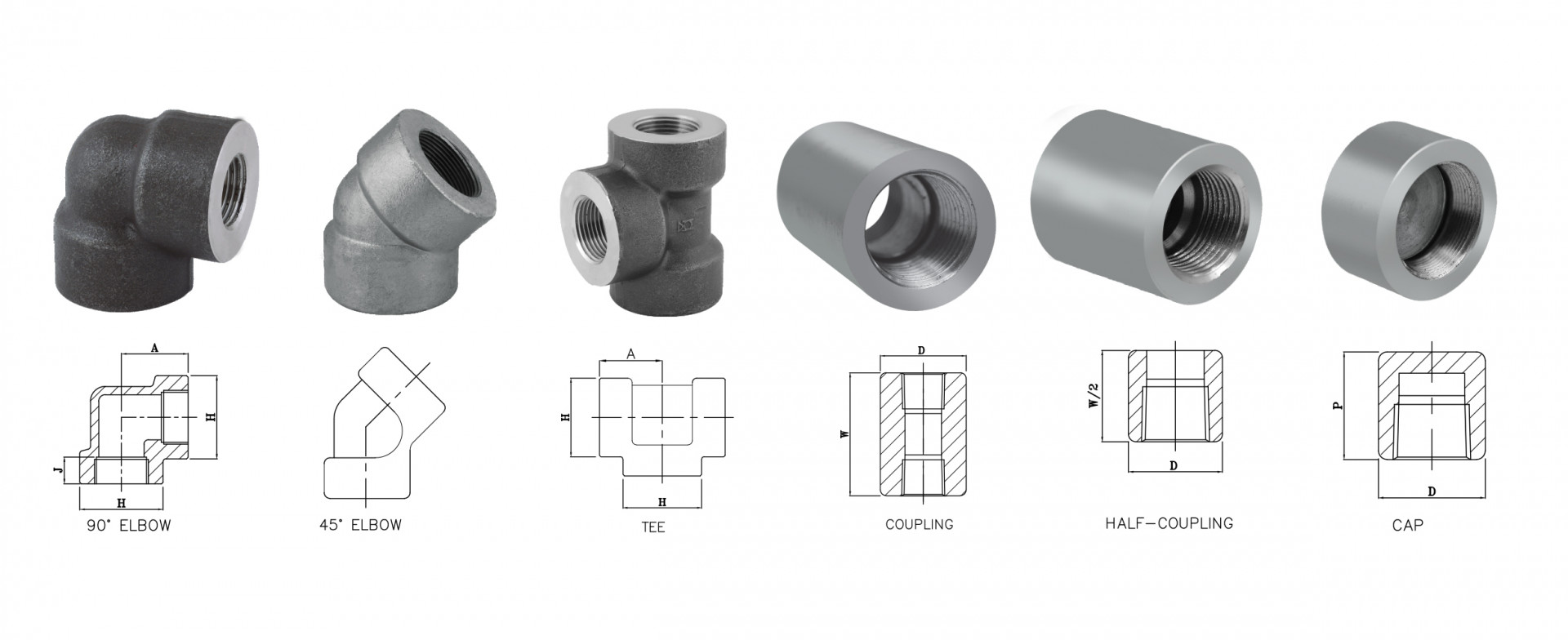

Dimensional Data
| DN | NOM. PIPE SIZE |
CENTER TO END ELBOW, TEE CROSS'A' |
CENTER TO END 45 ELBOW 'C' |
OUTSIDE DIAMETER OF BAND 'H' |
END TO END COUPLING W |
END TO END CAP P |
OUTSIDE DIAMETER D |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 3000 & 6000 | 3000 | 6000 | 3000 | 6000 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 32 | 19 | - | 18 | 22 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 35 | 25 | 27 | 19 | 25 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 38 | 25 | 27 | 22 | 32 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 48 | 32 | 33 | 28 | 38 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 51 | 37 | 38 | 35 | 44 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 60 | 41 | 43 | 44 | 57 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 67 | 44 | 46 | 57 | 64 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 79 | 44 | 48 | 64 | 76 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 84 | 102 | 86 | 48 | 51 | 76 | 92 |
Threads shall be NPT as per ASME B 1.20.1 Other forms of threads can also be provided on request.
