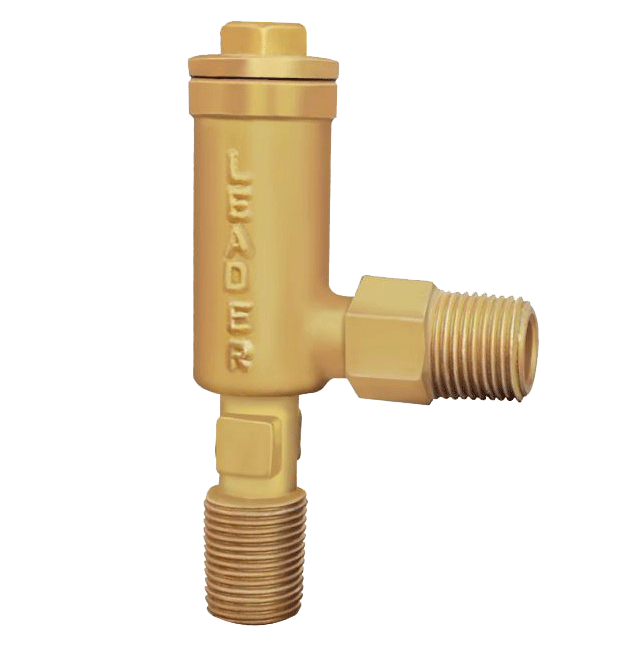

GM289 Brass Ferrule Cock IS 2692 PN-16 (Screwed)

GM00289
  • Item Code: GM00289
  • Pressure Rating: PN-16
  • Testing Standard: IS 2692
  • Size Range: 15mm
  • Product Standard: IS 2692

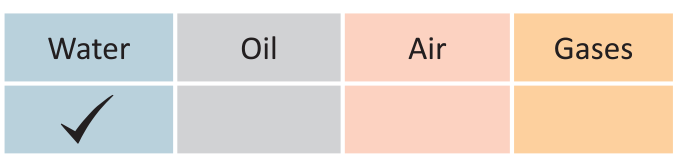

Suitable For

suitable color
GM00289

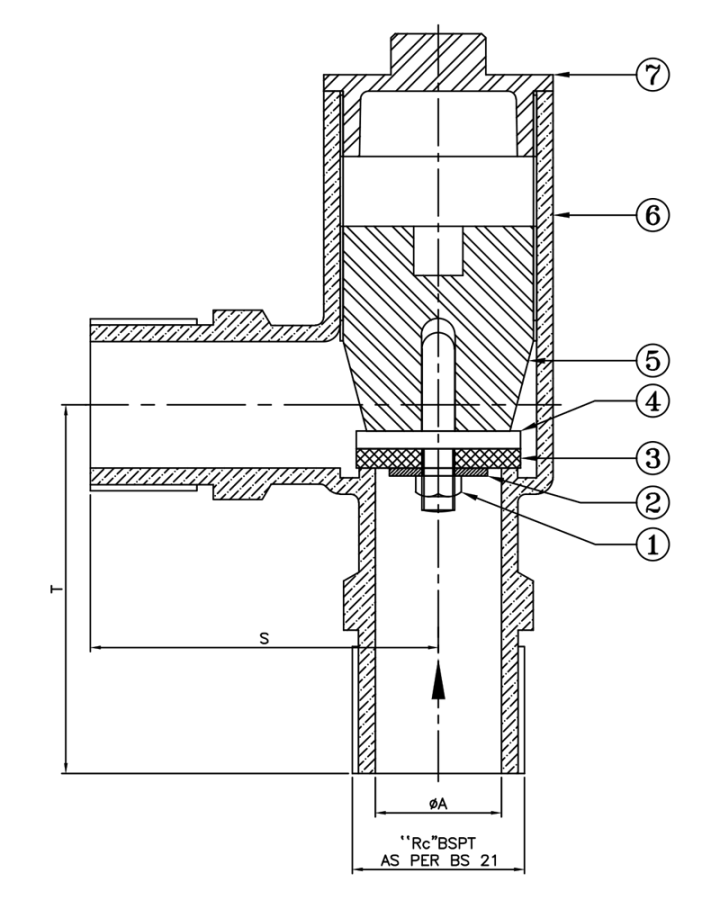

Material Specification

GM00289
P. No. NAME OF PART MATERIAL SPECIFICATION
  1 NUT BRASS IS 319
  2 WASHER BRASS IS 319
  3 WASHER RUBBER
  4 WASHER PLATE BRASS IS 319
  5 PLUG BRASS BRASS (EN1982 Gr. CC754S)
  6 BODY BRASS BRASS (EN1982 Gr. CC754S)
  7 CAP BRASS BRASS (EN1982 Gr. CC754S)
GM00289

Dimensional Data

GM00289

SIZE (mm) 15
T 60
S 55
∅A 12.3
BSPT TAPER 1/2"
Item Code GM 0289

Principle Features

  • Design Std. IS 2692.
  • Designed for high pressure.

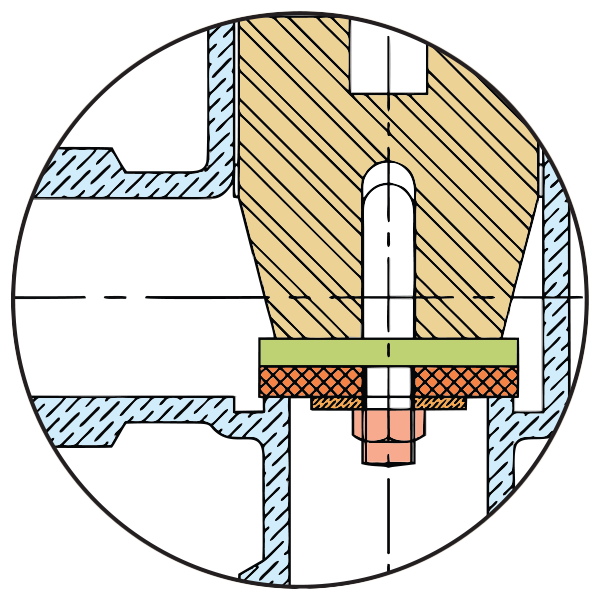

  • Resilient Rubber Disc.
  • Screwed Male Taper threads to BS21 / IS:554.
  • Best suitable for underground installation.

PRESSURE RATING: PN-16

TEST PRESSURE(Hydrostatic)
BODY SEAT
24 BAR (g) 17.6 BAR (g)

END CONNECTION

  • Screwed Male BSP Taper threads to BS21 / IS:554.

UTILISATION & SERVICE

  • “LEADER” Brass Ferrule Cocks are suitable for both above-ground & underground installations.
  • Best suited for potable water, treated fresh water.

WORKING PRESSURE

  • Maximum Working Pressure: 16 Bar.
  • See Pressure/Temperature Diagram.

TEMPERATURE LIMITS

  • Maximum working temperature: 100°C.
  • See Pressure / Temperature Diagram.
