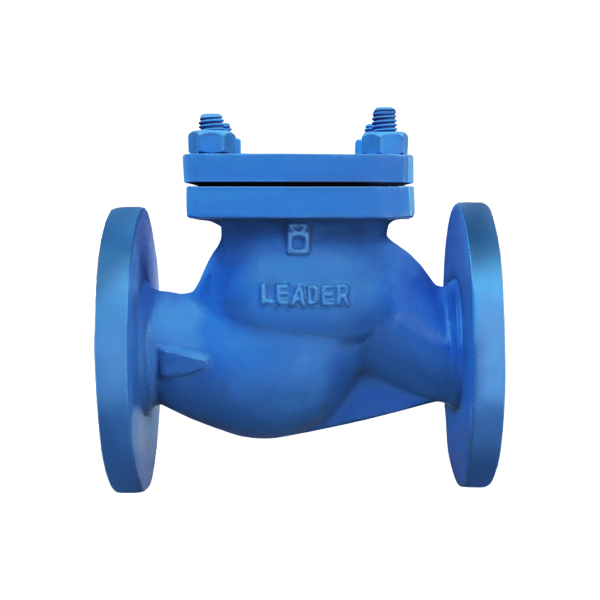

CI019 Cast Iron Horizontal Lift Check Valve PN-16 (Flanged)

ci019
  • Item Code: CI0019
  • Pressure Rating: PN-16
  • Testing Standard: BSEN 12266 Part-1
  • Size Range: 15mm to 300mm
  • Product Standard: DIN EN 12334

Suitable For

ci019

Material Specification

P. NO. NAME OF PART MATERIAL SPECIFICATION
1 BODY SEAT RING F.S.S ASTM A182 Gr. F6a
2 DISC RING F.S.S ASTM A182 Gr. F6a
3 DISC CAST IRON IS 210 Gr. FG200
4 BODY CAST IRON IS 210 Gr. FG200
5 GASKET C.N.A.F -
6 COVER CAST IRON IS 210 Gr. FG200
7 STUDS & NUTS FOR BODY & COVER CARBON STEEL -
ci019

Dimensional Data

ci019

SIZE (mm) 15 20 25 32 40 50 65 80 100 125 150 200 250 300
L±1.6 130 150 160 180 200 230 290 310 350 400 480 600 730 850±3.2
H~ 85 85 90 100 115 130 160 170 190 210 282 310 325 380
∅C 15 20 25 32 40 50 65 80 100 125 150 200 250 300
∅D 95 105 115 140 150 165 185 200 220 250 285 340 395 445
b 14 16 16 18 18 20 20 22 24 26 26 26 28 28
R∅ 45 58 68 78 88 102 122 138 158 188 212 268 320 370
f 2 2 2 2 3 3 3 3 3 3 3 3 3 4
K 65 75 85 100 110 125 145 160 180 210 240 295 350 400
n 4 4 4 4 4 4 4 8 8 8 8 8 12 12
d 14 14 14 18 18 18 18 18 18 18 23 23 23 23

Principle Features

INTRODUCTION
Leader Horizontal Lift Check valves are designed with high sensitivity to pressure so that the valve closes immediately before significant fluid starts flowing backward. Fluid reversing backward causes damage to equipment like boilers or pumps. The valve is activated by the flowing material in the pipeline. The pressure of the fluid passing through the system opens the valve disc, while any reversal of flow will lose the valve disc. Closure is accomplished by the weight of the check mechanism, by back pressure. Disc guides enhance the proper alignment of the disc and seat configuration when the disc closes. Entirely automatic in action, depending upon differential pressure and velocity of flow within the line to perform their functions of opening and closing.

  • Design Std.: DIN EN 12334.
  • Bolted Cover, Piston type Disc design.
  • Metal to Metal seating.
  • Stainless Steel Body & Disc rings.
  • Rigid & Sturdy design.
  • Long service life as wear is minimal which makes it highly reliable.
  • Valve is mechanically automatic and thus it does not need an actuator or valve operator.
  • Suitable for only horizontal installation.
  • The valve must be installed in the direction of the flow arrow.
  • Flanged ends as per DIN EN 2533 PN-16 R.F.
  • Valves are available with IBR Certification up to size 200mm.
  • Widely applied for low-pressure and ambient-temperature utility services such as water supply, power plants, gas supply, district heating piping, irrigation projects, air conditioning systems, as well as food processing industry, chemical and petrochemical industry, Boiler industry, pharmaceutical, and powder industry to prevent the backflow.

END CONNECTION

  • Flanged ends as per DIN EN 2533 PN-16 R.F.
  • Flange drilling as per other standards also available upon request.

UTILISATION & SERVICE

  • “LEADER” Cast Iron Swing Check valves are suitable for above-ground installations.
  • Best suited for potable water, treated fresh water, neutral liquids Steam & some gases.

WORKING PRESSURE

  • Maximum Working Pressure: 16 Bar.

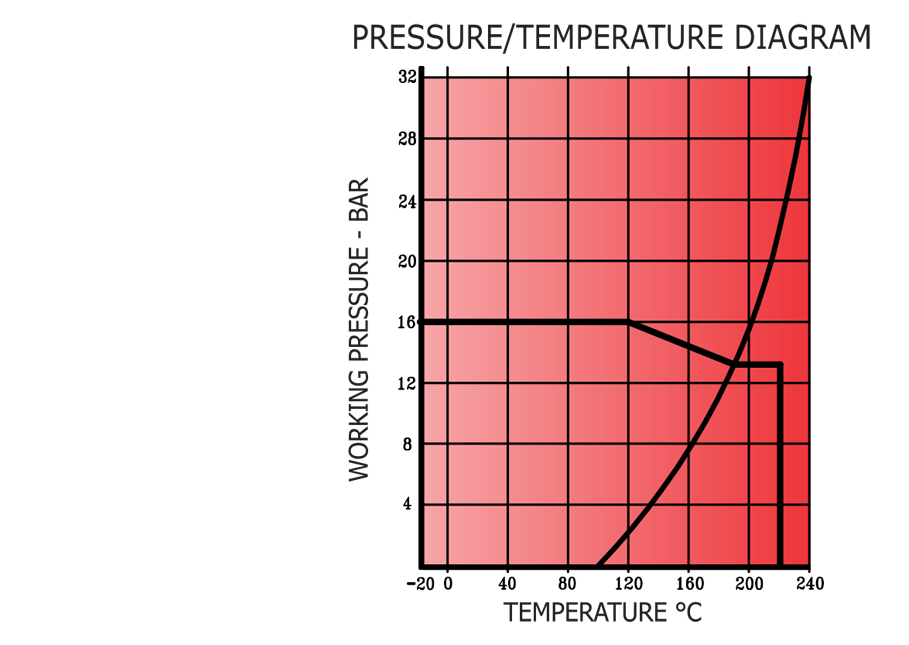

  • See Pressure / Temperature Diagram.

TEMPERATURE LIMITS

  • Maximum Working Temperature: 220°C.
  • See Pressure / Temperature Diagram.

TEST PRESSURE (Hydrostatic)

Rating PN-16
Body (Hyd.) 24 Bar
Seat (Hyd.) 16 Bar
