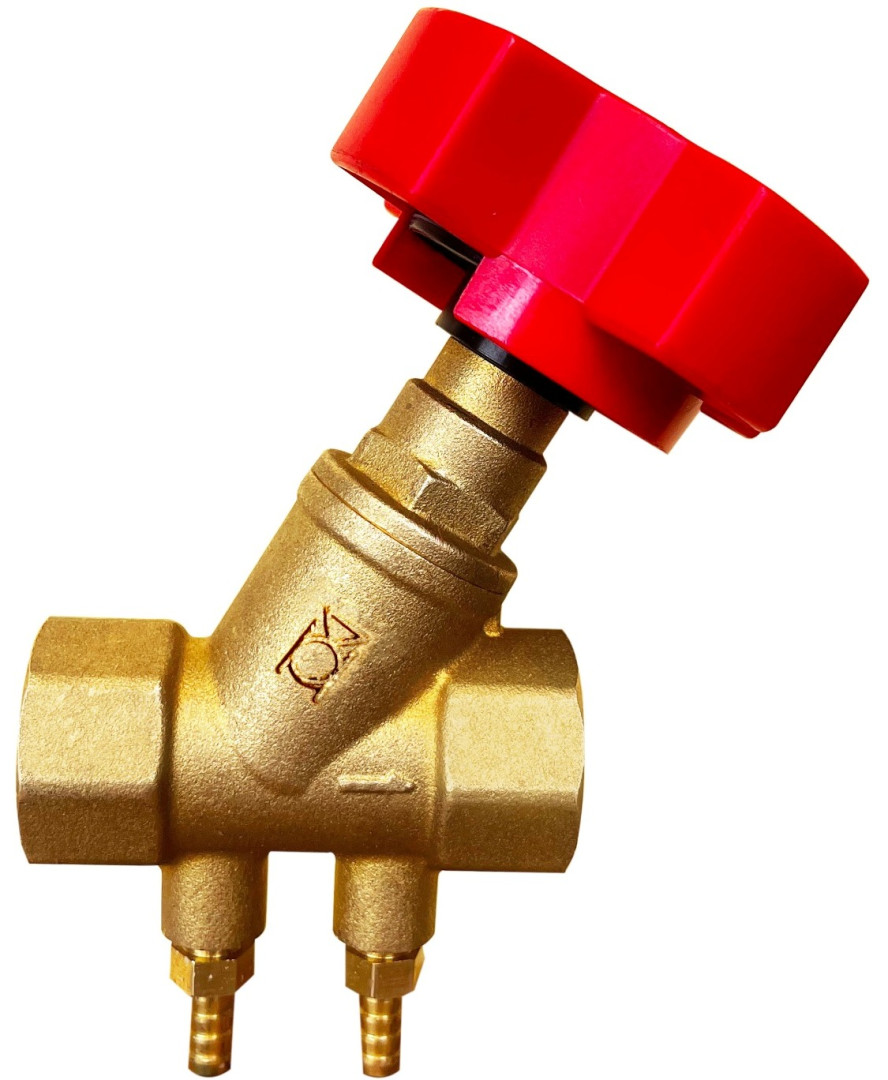

- Item Code: FLB275
- Pressure Rating: PN-16
- Testing Standard: BS 7350
- Size Range: 20mm to 50mm
- Product Standard: Confirms to BS 7350
Suitable For

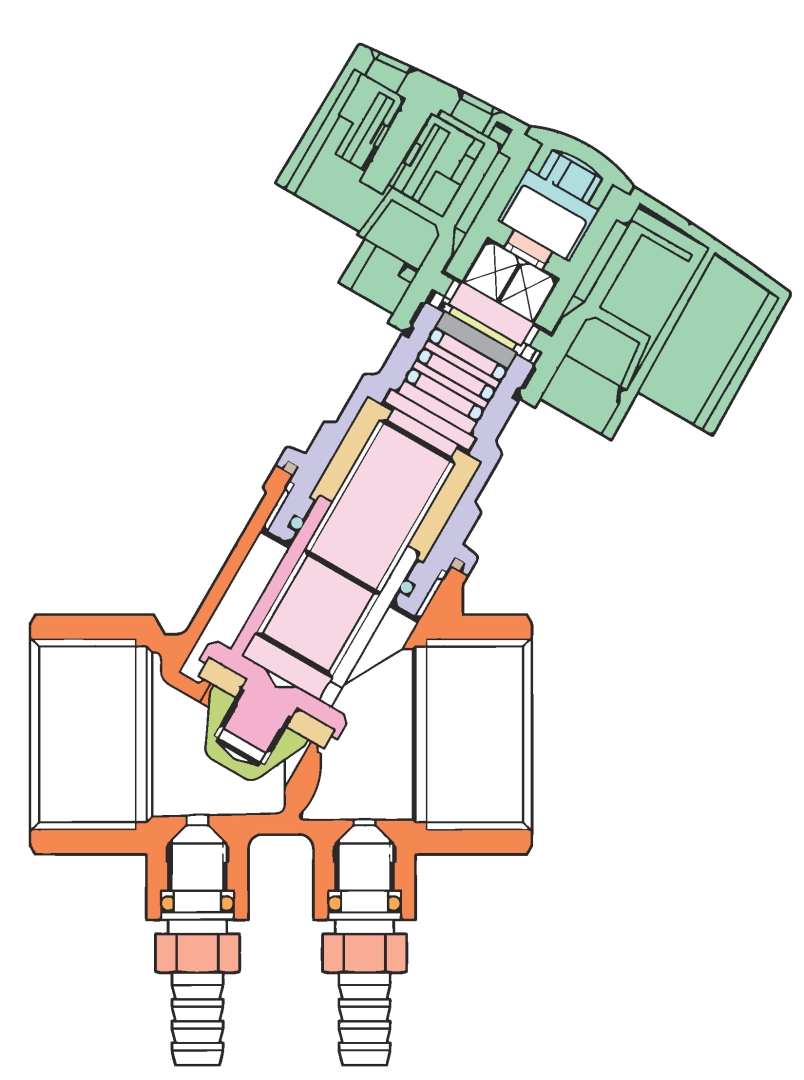

Material Specification
| P. No. | NAME OF PART | MATERIAL | |
|---|---|---|---|
| 1 | CONNECTOR | FORGED BRASS | |
| 2 | O-RING | EPDM | |
| 3 | VALVE BODY | FORGED BRASS | |
| 4 | FAUCET SPOOL | FORGED BRASS | |
| 5 | GASKET | PTFE | |
| 6 | VALVE CORE | FORGED BRASS | |
| 7 | O-RING | EPDM | |
| 8 | GASKET | PTFE | |
| 9 | BONNET | FORGED BRASS | |
| 10 | VALVE STEM | FORGED BRASS | |
| 11 | O-RING | EPDM | |
| 12 | SPLIT WASHER | SUS 304 | |
| 13 | DIGITAL HAND WHEEL | ABS | |
| 14 | HEXAGONAL CYLINDRICAL HEAD SNAIL | FORGED BRASS | |
| 15 | TRIM | ABS | |
Dimensional Data

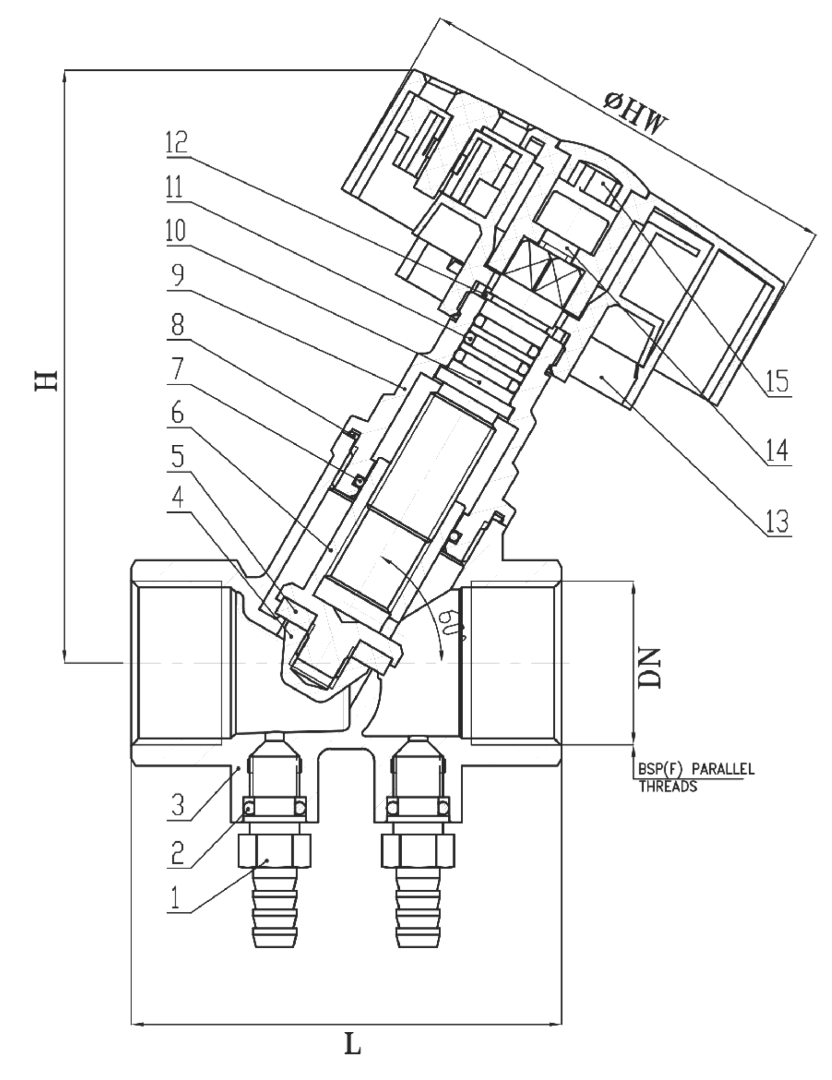

| SIZE (mm) | HW | H | L | Item Code |
|---|---|---|---|---|
| 20 | 69.5 | 95 | 69 | FLB 275 |
| 25 | 69.5 | 97.6 | 79 | FLB 275 |
| 32 | 69.5 | 107.1 | 95 | FLB 275 |
| 40 | 69.5 | 122.2 | 100 | FLB 275 |
| 50 | 69.5 | 130.6 | 117 | FLB 275 |
Principle Features
- Tested according to BS:7350.

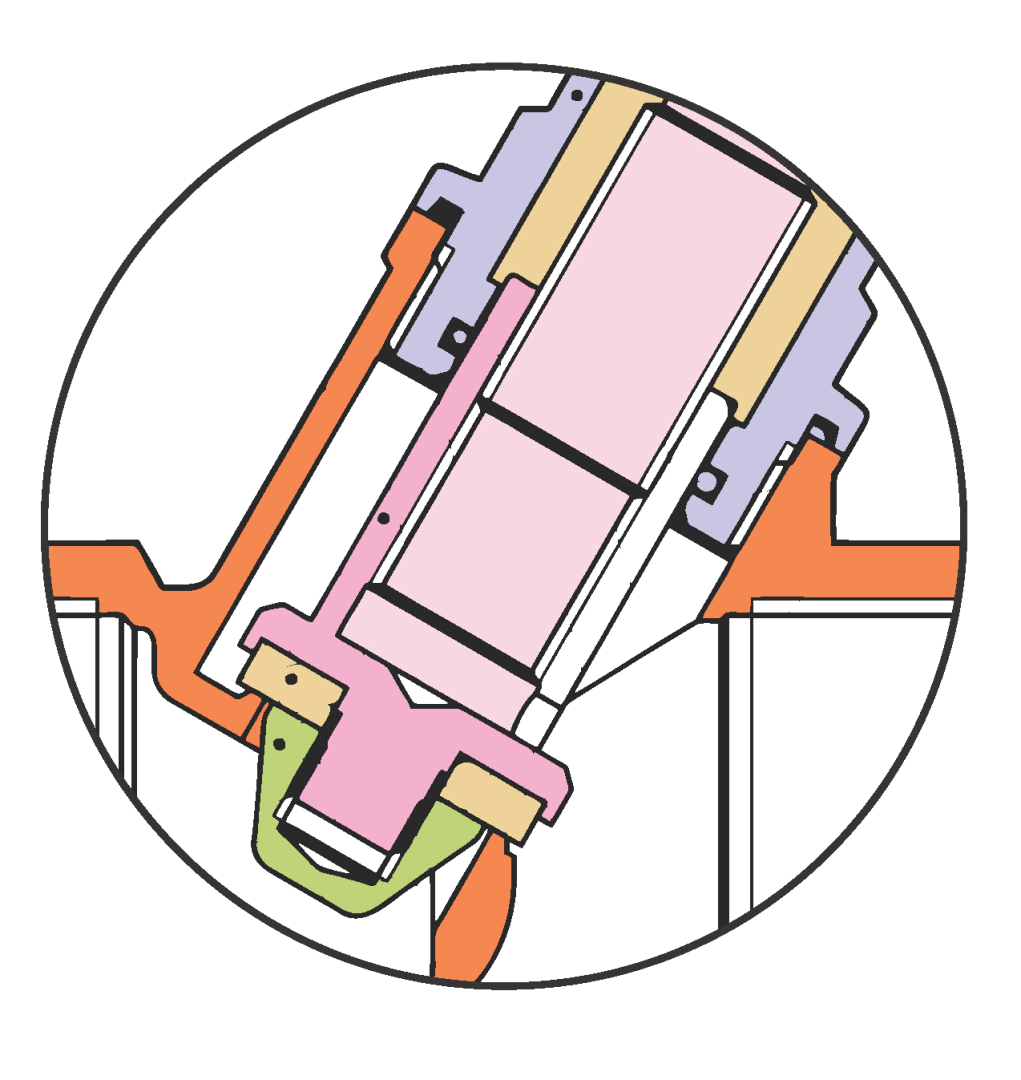

- Oblique Seats offer precise regulation and a resistance lower than the valve with a straight seat.
- Head losses are small, which for a same DN leads to more important flows than those borne by a straight seal valve.
- Tolerance on nominal Kv for fully open valve + 10%.
- Provided with mounted test points (1/4” female thread).
- Positive shot-off achieved by PTFE seal / Disc.
- Tamper proof setting.
- Screwed female end as per IS 554 / BS 21.
PRESSURE RATING: PN-16
| TEST PRESSURE(Hydrostatic) | |
|---|---|
| BODY | SEAT |
| 24 BAR (Hyd.) | 17.6 BAR (Hyd.) |
END CONNECTION
- Screwed Female BSP parallel threads.
UTILISATION & SERVICE
- “LEADER” Forged Brass Double Regulating Balancing Valve are Regulating Balancing Valve are Suitable for HVAC application of Water, Ethylene, Glyol Mixture (Hydronic System).
WORKING PRESSURE
- Maximum Working Pressure: 16 Bar.

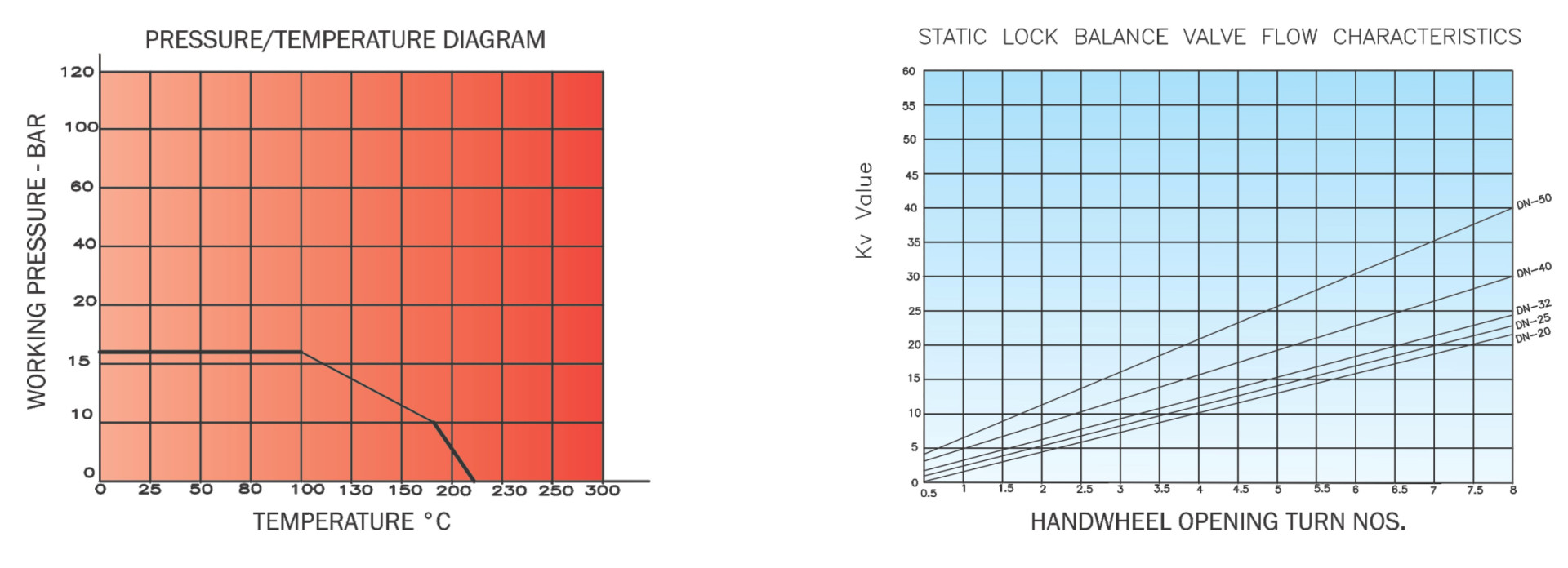

- See Pressure/Temperature Diagram.
TEMPERATURE LIMITS
- Maximum working temperature: (-) 20°C to (+) 120°C.
- See Pressure / Temperature Diagram.
