Material Specification

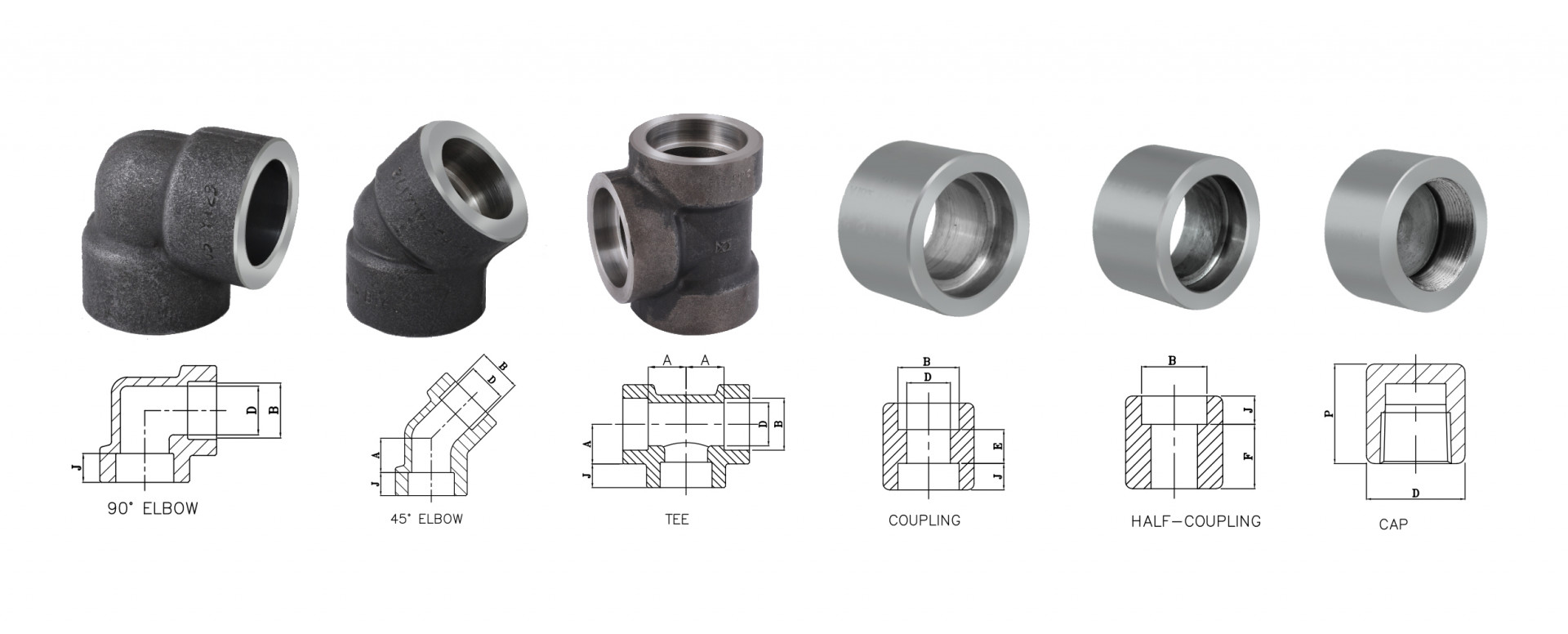

| Product | Elbow 90 Deg. | Elbow 45 Deg. | Tee | Full Coupling | Half Coupling | Round Cap |
|---|---|---|---|---|---|---|
| Product Standard | ASME B16.11 | ASME B16.11 | ASME B16.11 | ASME B16.11 | ASME B16.11 | ASME B16.11 |
| Material | A105, LF2, F5, F9, F11, F22, F304, F304L, F316, F316L, F321 | A105, LF2, F5, F9, F11, F22, F304, F304L, F316, F316L, F321 | A105, LF2, F5, F9, F11, F22, F304, F304L, F316, F316L, F321 | A105, LF2, F5, F9, F11, F22, F304, F304L, F316, F316L, F321 | A105, LF2, F5, F9, F11, F22, F304, F304L, F316, F316L, F321 | A105, LF2, F5, F9, F11, F22, F304, F304L, F316, F316L, F321 |
| End Detail | Socket Weld to ASME B16.11 | Socket Weld to ASME B16.11 | Socket Weld to ASME B16.11 | Socket Weld to ASME B16.11 | Socket Weld to ASME B16.11 | Socket Weld to ASME B16.11 |
Dimensional Data
| DN | NOM. PIPE SIZE |
SOCKET BORE DIA.'B' |
BORE DIAMETER OF FITTINGS |
DEPTH OF SOCKET 'J' MIN |
CENTER TO BOTTOM OF SOCKET - 'A' | LAYING LENGTH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CLASS DESIGNATION |
90° ELBOW, TEE AND CROSSES |
45° ELBOW | COUPLING | HALF COUPLING | ||||||||||
| 3000 | 6000 | 9000 | CLASS DESIGNATION | CLASS DESIGNATION | ||||||||||
| 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | E | F | |||||||
| 6 | 1/8 | 11.2 10.8 |
7.6 6.1 |
4.8 3.2 |
- - |
9.5 | 11.0 | 11.0 | - | 8.0 | 8.0 | - | 6.5 | 16.0 |
| 8 | 1/4 | 14.6 14.2 |
10.0 8.5 |
7.1 5.6 |
- - |
9.5 | 11.0 | 13.5 | - | 8.0 | 8.0 | - | 6.5 | 16.0 |
| 10 | 3/8 | 18.0 17.6 |
13.3 11.8 |
9.9 8.4 |
- - |
9.5 | 13.5 | 15.5 | - | 8.0 | 11.0 | - | 6.5 | 17.5 |
| 15 | 1/2 | 22.2 21.8 |
16.6 15.0 |
12.5 11.0 |
7.2 5.6 |
9.5 | 15.5 | 19.0 | 25.5 | 11.0 | 12.5 | 15.5 | 9.5 | 22.5 |
| 20 | 3/4 | 27.6 27.2 |
21.7 20.2 |
16.3 14.8 |
11.8 10.3 |
12.5 | 19.0 | 22.5 | 28.5 | 13.0 | 14.0 | 19.0 | 9.5 | 24.0 |
| 25 | 1 | 34.3 33.9 |
27.4 25.9 |
21.5 19.9 |
16.4 14.4 |
12.5 | 22.5 | 27.0 | 32.0 | 14.0 | 17.5 | 20.5 | 12.5 | 28.5 |
| 32 | 1-1/4 | 43.1 42.7 |
35.8 34.3 |
30.2 28.7 |
23.5 22.0 |
12.5 | 27.0 | 32.0 | 35.0 | 17.5 | 20.5 | 22.5 | 12.5 | 30.0 |
| 40 | 1-1/2 | 49.2 48.8 |
41.6 40.1 |
34.7 33.2 |
28.7 27.2 |
12.5 | 32.0 | 38.0 | 38.0 | 20.5 | 25.5 | 25.5 | 12.5 | 32.0 |
| 50 | 2 | 61.7 61.2 |
53.3 51.7 |
43.6 42.1 |
38.9 37.4 |
16.0 | 38.0 | 41.0 | 54.0 | 25.5 | 28.5 | 28.5 | 19.0 | 41.0 |
| 65 | 2-1/2 | 74.4 73.9 |
64.2 61.2 |
- - |
- - |
16.0 | 41.0 | - | - | 28.5 | - | - | 19.0 | 43.0 |
Upper & Lower Values for each size are the resp. max. & min. dimensions
