- Item Code: GM014
- Pressure Rating: PN-20
- Testing Standard: BSEN 12266 PART-1
- Size Range: 8mm to 100mm
- Product Standard: BS 5154
Suitable For
Material Specification
| P. No. | NAME OF PART | MATERIAL | SPECIFICATION | |
|---|---|---|---|---|
| 1 | BODY | GUN METAL | BS 1982 CC491K | |
| 2 | NUT | GUN METAL / BRASS | BS 1982 CC491K / DIN EN 12165 CW617N | |
| 3 | DISC | SYNTHETIC RUBBER | BS 2751 Gr. BA 70 | |
| 4 | DISC HOLDER | GUN METAL | BS 1982 CC491K | |
| 5 | STEM | H.T. BRASS | DIN EN 12165 CW721R | |
| 6 | UNION NUT | GUN METAL | BS 1982 CC491K | |
| 7 | BONNET | GUN METAL | BS 1982 CC491K | |
| 8 | PACKING | NON ASBESTOS | ||
| 9 | GLAND FOLLOWER | GUN METAL / BRASS | BS 1982 CC491K / DIN EN 12165 CW617N | |
| 10 | GLAND NUT | GUN METAL | BS 1982 CC491K | |
| 11 | HAND WHEEL | CAST IRON / MILD STEEL | BSEN 1561 Gr.200 / M.S.SHEET | |
| 12 | WASHER | CARBON STEEL | ANY GRADE | |
| 13 | SCREW | CARBON STEEL | ANY GRADE | |
Dimensional Data
| SIZE (mm) | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 60 | 60 | 57 | 65 | 81 | 88 | 100 | 120 | 168 | 203 | 248 |
| ∅W | 60 | 60 | 60 | 60 | 70 | 80 | 90 | 110 | 140 | 157 | 184 |
| 'C' | 5/16” | 3/8” | 1/2” | 3/4” | 1” | 1-1/4” | 1-1/2" | 2” | 2-1/2” | 3” | 4” |
| ~H | 90 | 90 | 108 | 115 | 128 | 180 | 200 | 240 | 245 | 261 | 331 |
| Item Code | GM 014 | GM 014 | GM 014 | GM 014 | GM 014 | GM 014 | GM 014 | GM 014 | GM 014 | GM 014 | GM 014 |
Principle Features
- Design Std.: BS 5154.

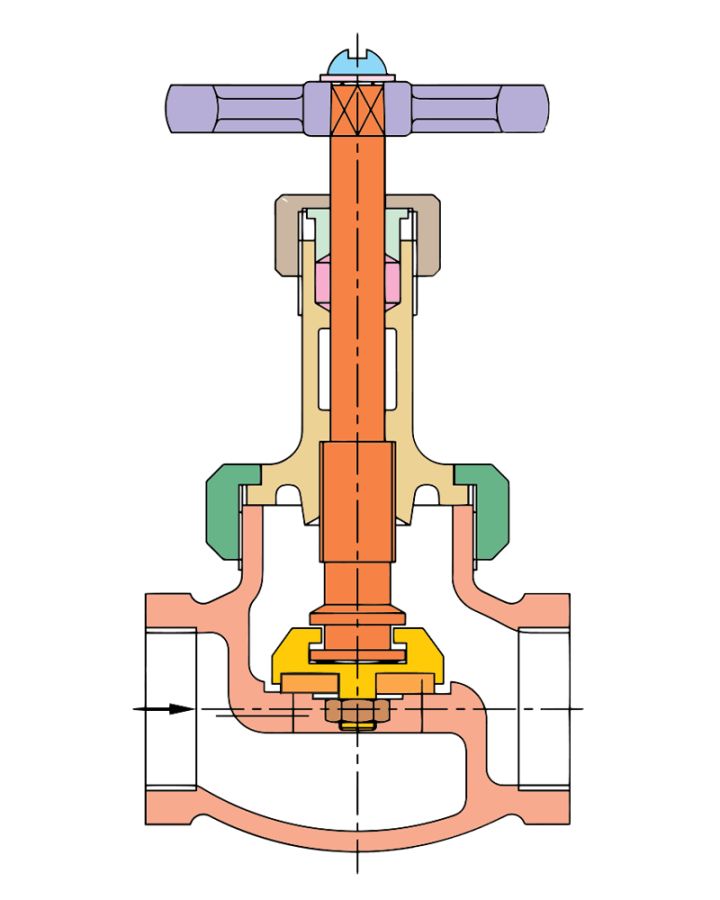

- Union bonnet, inside screw rising stem.

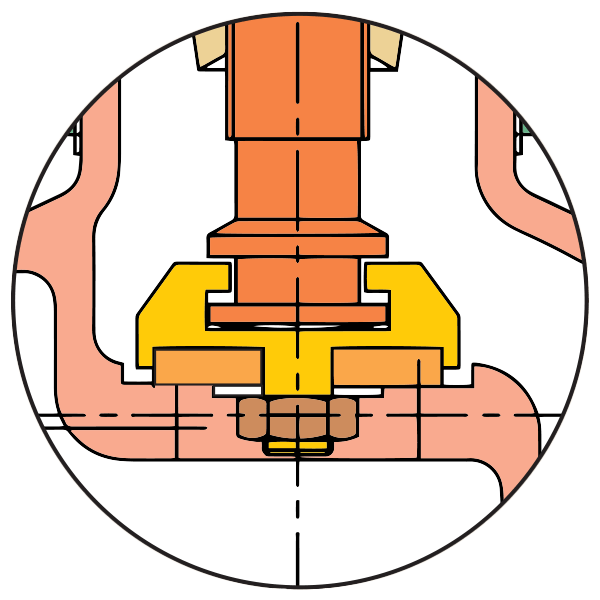

- Renewable Rubber Disc.
- Screwed female BSP parallel threads to BS21 / IS:554.
- Extra strength of stem with high tensile brass.
- Provision for re-packing under pressure in the installed condition.
- Wear-resistant solid and long-lasting materials.
- Sheet metal handwheel offers better strength & convenient operation.
- Easy visual control of open/closed position marked on the handwheel/nameplate.
- Available with open-shut indicator & locking arrangement on request.
- Also available with PTFE Seating at an extra cost.
PRESSURE RATING: PN-20
| TEST PRESSURE(Hydrostatic) | |
|---|---|
| BODY | SEAT |
| 30 BAR (g) | 22 BAR (g) |
END CONNECTION
- Screwed Female Parallel Threads to BS21 / IS:554.
- Taper Threads available only upon request.
UTILISATION & SERVICE

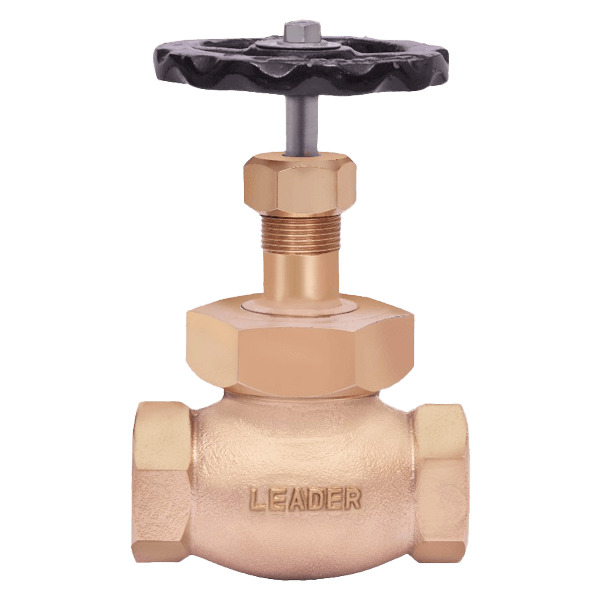

- The "LEADER" Gun Metal Gate valves are suitable for above-ground installations.
- Best suited for hot & cold water, air, neutral liquids & some gases.
WORKING PRESSURE
- Maximum Working Pressure: 20 Bar.

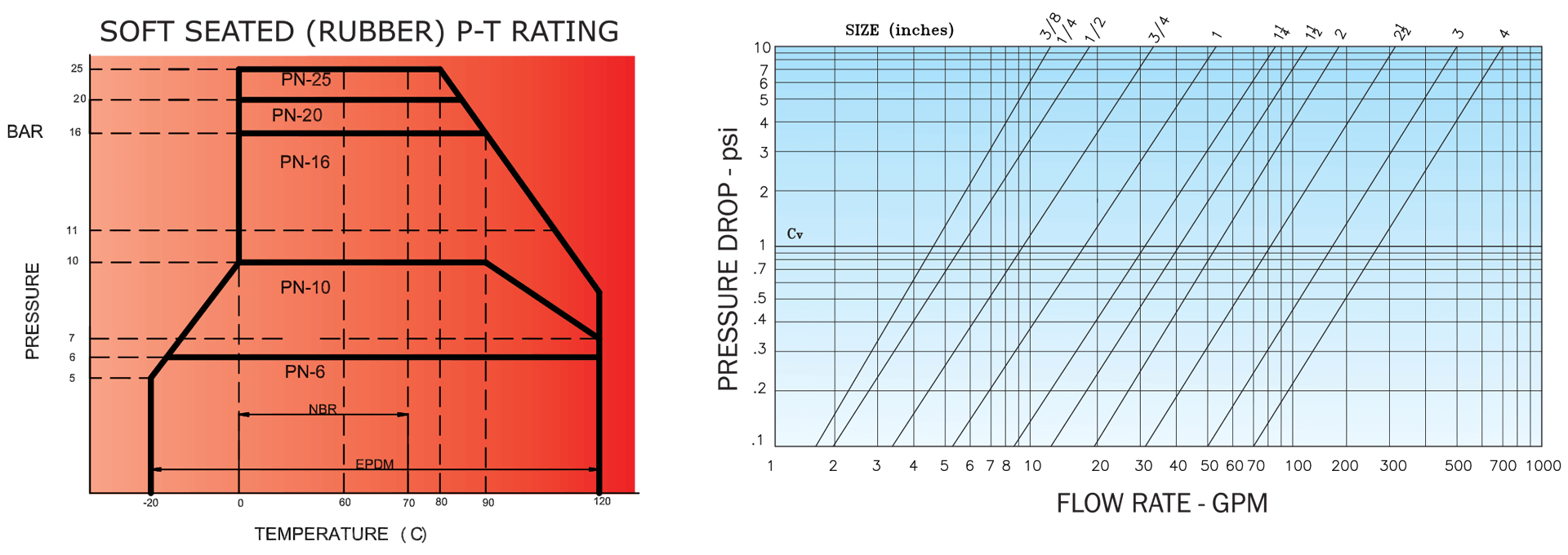

- See Pressure/Temperature Diagram.
TEMPERATURE & LIMITS
- Maximum working temperature: 100°C.
- See Pressure / Temperature Diagram.
